T8 Series Data Radios
We are proud to introduce our latest product line. The T8 Series Data Radio. By fusing world class Miratron radio technology and ruggedized environmental housings, we have created a robust remote data delivery system. Whether it's in an isolated wind farm, a cramped production plant or energy metering on a remote rooftop. We can provide you with a solution to those hard-to-reach places. We employ wireless technology to open up areas where cabling is just not viable or too expensive. Our systems have integrated solar and battery backup so no power source is required. Compatible with a variety of proprietary and third-party sensors, the T8 Series EDR has the versatility you need to reduce costs, time and improve reliability.
Remote Area Data Collection
Miratron's world class energy and environmental data radios make hard-to-access areas easily accessible. With a 3-mile range and self contained solar power options, you can get the data you need when you need it.

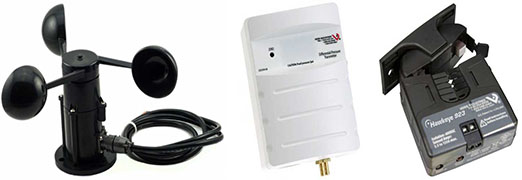

Compatible With a Variety of Sensors
The T8 series of energy and environmental data radios are compatible with a range of proprietary and third-party sensors. Giving you the flexibility to retrofit existing equipment and gather many types of data.
The T8 Family

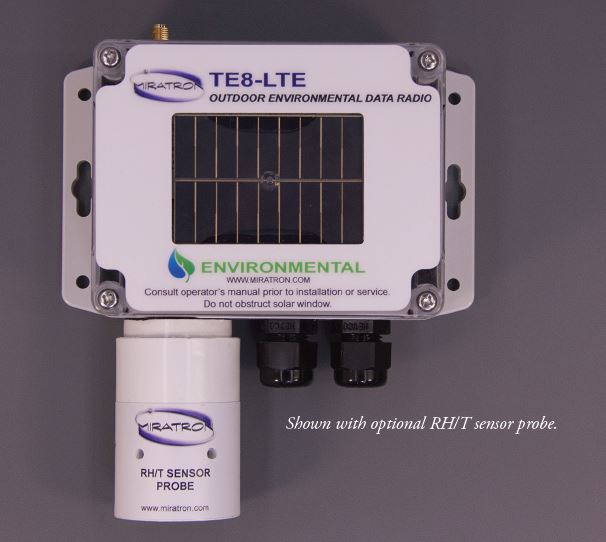

T8-LTE Long-range, Wireless Sensor Transceiver For Analog Sensors
Internally and Externally powered
Available as battery powered, solar powered, or externally powered.
Configurable input options Models available with two general purpose analog inputs switch selectable for 0-10v, or 4-20mA instruments, or 10k-ohm thermistors.
Sensor options Available with integrated outside air relative humidity and temperature sensor. Can be used in addition to other analog or thermistor inputs.
Long-Range communication Long-range 2.4GHz radio link for reliable operation to 1,500 feet. High power 900MHz model available for reliable line-of-sight communication up to 3 miles with directional antenna.
Rugged Impact resistant polycarbonate enclosure with weather tight gasket and cable seals stands up to harsh environments.

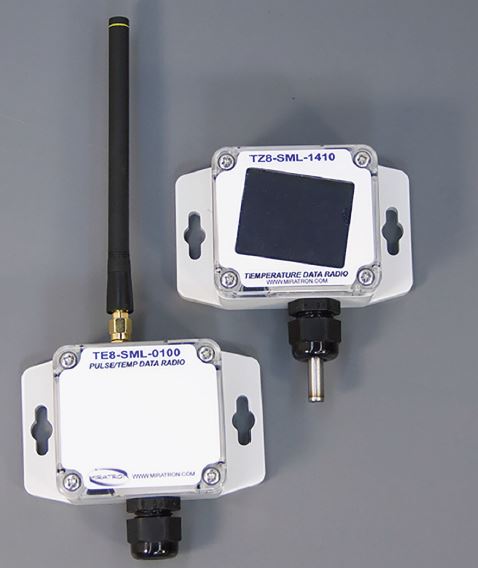

T8-SML Compact Wireless Pulse / Temperature Transceiver For Pulse Meters
Internally and Externally powered
Available as battery powered, solar powered, or externally powered.
Configurable input options Models available with integral temperature sensing, externally wired thermistor, or dry contact/switch pulse counting.
Long-Range communication Long-range 2.4GHz radio link for reliable operation to 1,500 feet. High power 900MHz model available for reliable line-of-sight communication up to 3 miles with directional antenna.
Rugged Impact resistant polycarbonate enclosure with weather tight gasket and cable seals stands up to harsh environments.

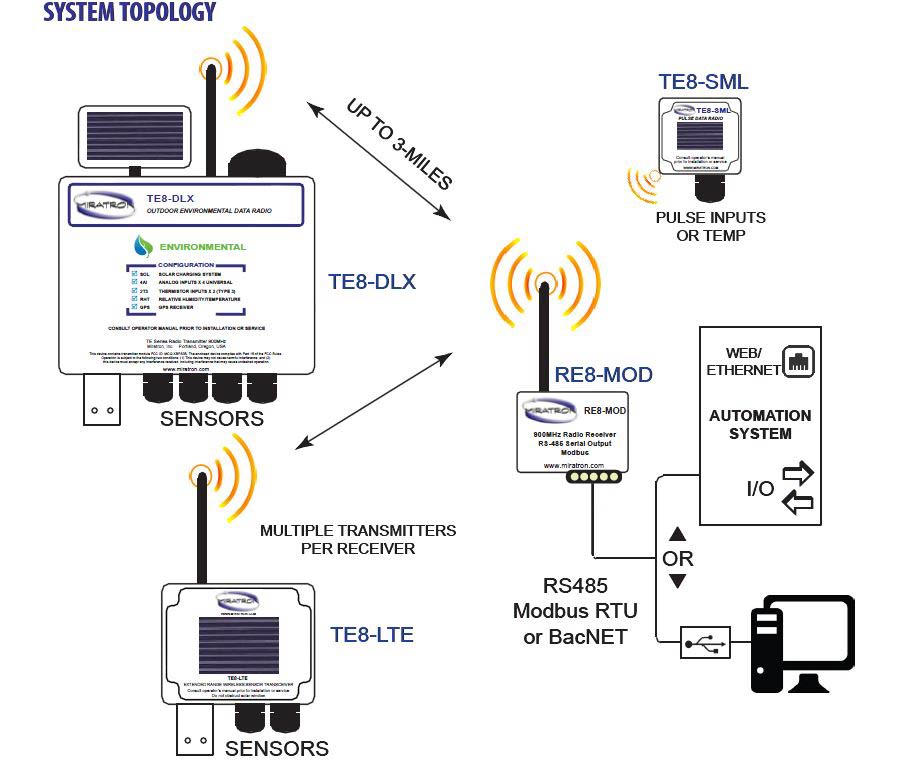

R8-MOD / R8-BAC Serial Output Receivers
Compact Size
Easily integrated in tight control panels. Fits in 3” x 3” area.
Long-Range communication Long-range 2.4GHz radio link for reliable operation to 1,500 feet. High power 900MHz model available for reliable line-of-sight communication up to 3 miles with directional antenna.
Easy Integration RS-485 serial output available with Modbus RTU or BACnet MS/TP. Compatible with popular BAS controllers, PLC’s and DAS equipment.
Flexible antenna options RZ8 standard range models equipped with internal antenna. RE8 extended range models includes RP-SMA connected rubber duck. Optional external wire whip or extended range Yagi available for improved performance.
Sensors and Accessories
T8-RHT- Outside Air Relative Humidity and Temperature Probe with Solar Shield- Factory Installed
Fully calibrated. Excellent long-term stability. Recovers from 100% saturation.
T8-IMM- Stainless Steel, Potted Immersion Probe with Armored Cable
Stainless steel probe. Encapsulated sensor. Armored cable. Weatherproof.
T8-VAC- Vaccum Sensor Kit for use with Popular Soil Tensiometers
Easy retrofit to popular soil tensiometer tubes. Factory Calibrated. Armored cable.
T8-ANE- Pulse to Analog Adapter Kit for use with Popular Rotary Cup Anometers
Compact, weatherproof enclosure. Simple installation. Preconfigured conversion.
T8-LVL-[PSI]- Pressure Transducer for Liquid Level Measurement
Rugged stainless construction. Submersible. Compatible with various liquids.
ANT-YAG-900- Directional Option for Improved Performance
Directional Yagi, 4-Element
ANT-OMN-900- Omni-Directional Option for Improved Performance
Robust Omni-Directional Wire-Whip
T8-PMK-LTE / T8-PMK-DLX- Kits for Pole Installation
Simple to install with common tools.
Software Tools
8 Series Setup Utility. Click the link below to download our latest configuration tool. This software allows you to pair T8 transmitters with R8 receivers. You can also configure transmitter settings such as the ping rate, warm-up time and view data.
**Note: Some browsers will try to prevent you from downloading zip files. You may have to manually allow the file to be saved to your computer.**
R8 Series Setup Utility v1.1.zip8 Series Installation Guide. This is a link to a easy to use convenient guide to help you get your system up and running quickly.
8 Series Installation GuideClick the link below to download the Obvius Acquisuite MBT file. Use a zip utility to unzip the file. This is a configuration file that supports up to 10 transmitters. This map is designed to work specifically with the Obvius Acquisuite.
Obvius Acquisuite MBT File for T8 Series 'R8_MASTER mbt file.zip'
